    3963*2025*2410 F-800 Triplex Mud Pump For Drilling Rigs 800hp 597kw

    Ask Lasest Price
    Brand Name : XW
    Model Number : F-800
    Certification : ISO9000
    Payment Terms : T/T
    Supply Ability : 100
    Delivery Time : 30
    • Product Details
    • Company Profile

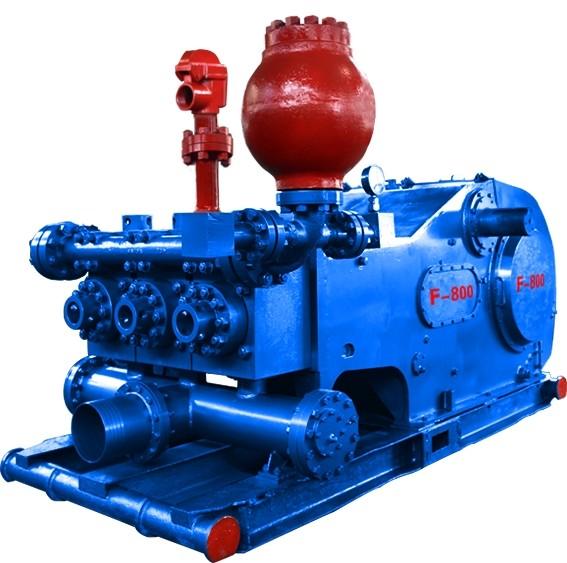

    3963*2025*2410 F-800 Triplex Mud Pump For Drilling Rigs 800hp 597kw

    800 hp/kw 3963*2025*2410 F-Series Triplex Mud Pump/Oilwell Triplex Pumps

    Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standard. Therefore it is easy to repair and maintain internationally .


    3963*2025*2410 F-800 Triplex Mud Pump For Drilling Rigs 800hp 597kw3963*2025*2410 F-800 Triplex Mud Pump For Drilling Rigs 800hp 597kw

    • F-800 Technical Specifications
    TypeHorizontal Triplex Single Acting Piston PumpGear TypeHerringbone Gear

    Rated Input Power

    (KW/HP)

    597/800Gear Ratio4.185:1
    Rated Stroke (SPM)150LubricationForced & Splashing
    Stroke Length (mm/in)228.6/9〃Valve CavityAPI-6#
    Inlet Connection10〃(254mm)Outlet Connection5 1/8〃Flange 5000PSI
    Weight(Kg/Pound)14500/31970

    Overall Dimension

    (L×W×H)

    3963×3146×2321mm
    SPMRated PowerLiner Dia.(in) and Pressure Rating (Mpa)/(psi)
    6-3/46-1/26-1/465-1/254-1/24

    13.56

    1965

    14.63

    2120

    15.82

    2295

    17.16

    2490

    20.43

    2965

    24.72

    3585

    30.51

    4425

    35

    5075

    HPKW
    Displacement (L/S)/(gpm)
    150800597

    39.58

    627

    36.70

    582

    33.94

    538

    31.27

    496

    26.28

    417

    21.72

    344

    17.59

    279

    13.90

    220

    140747557

    36.94

    586

    34.26

    543

    31.67

    502

    29.19

    463

    24.53

    389

    20.27

    321

    16.42

    260

    12.97

    206

    130693517

    34.30

    544

    31.81

    504

    29.41

    466

    27.10

    430

    22.78

    361

    18.82

    298

    15.25

    242

    12.05

    191

    120640477

    31.67

    502

    29.36

    465

    27.15

    430

    25.02

    397

    21.02

    333

    17.37

    275

    14.07

    223

    11.12

    176

    110587438

    29.03

    460

    26.92

    427

    24.89

    395

    22.93

    363

    19.27

    305

    15.93

    252

    12.90

    204

    10.19

    162

    Based on 100% volumetric efficiency and 90% mechanical efficiency
